codecrumbs [WIP, stay tuned!]

What · Demo · Get started · Features · codecrumbs.io · Support · Contribute

What

Have you ever got lost in a big or unknown codebase? If so, this tool will help you a lot to solve that, if no - check it out anyway, it will dramatically increase your development speed and quality of application architecture.

How it works? You run codecrumbs command for a codebase, it analyzes it and starts watching its changes, also, it runs UI client which will reflect codebase state "on the fly". From this moment, apart of your code editor, you have codecrumbs UI client running in the browser tab to give you a completely new point of view on your code.

-@bliashenko

Demo

Check out standalone version running here with defined trail of codecrumbs.

Get started

Install codecrumbs globally or in devDependencies: yarn add codecrumbs -D

Add command with entry file and source directory to scripts section in your package.json. Change -e (entry point file), -d (directory) params to match paths inside your project.

  // package.json
  ...
  "scripts": {
    "start:cc": "codecrumbs -e src/index.js -d src"
  }

Run yarn start:cc from the terminal. Go to http://localhost:2018/# in the browser to check it out.

Features

Breadcrumbs

Leave breadcrumbs by simply putting a comment in code, diagram wil be updated on the fly!

Write //cc:here is breadcrumb to put a simple breadcrumb in the code. cc (stands for "codecrumb") is the prefix which used by the parser, and here is breadcrumb is a title of our first breadcrumb.

Trail of breadcrumbs

Also, you can create “trail of breadcrumbs” — basically, a sequence of codecrumbs which follow some data flow (e.g. user login, or form submit, etc.). To create a codecrumb as part of a trail you write: //cc:signin#3;enable route where signin is the trail ID, #3 is order number of step, enable route is a title describing the step.

Check out the introduction article here for more details.

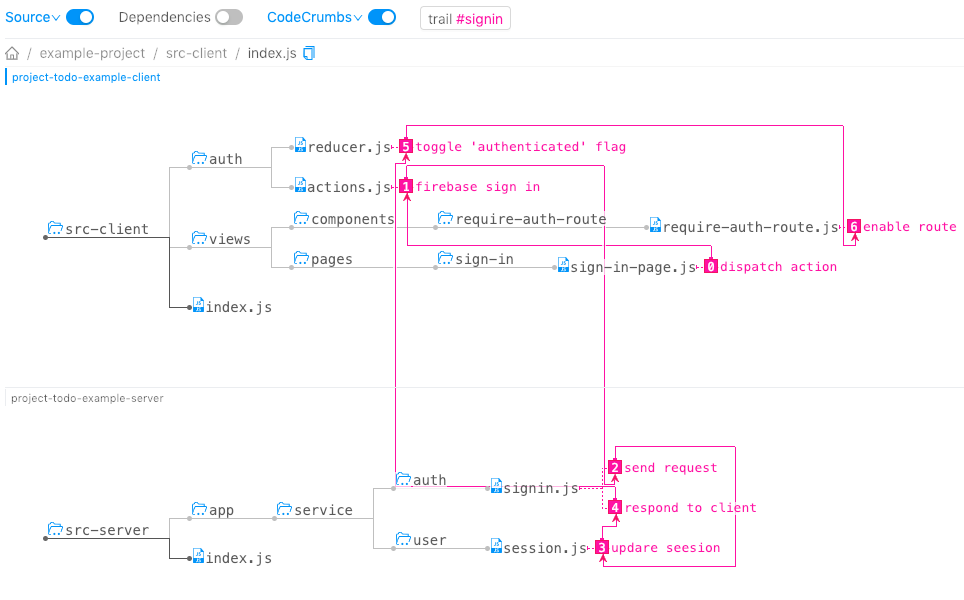

Multi-codebase integration

You might be interested to study connections between several codebases (sub-modules), codecrumbs supports that. Simply start codecrumbs multiple times (once for each codebase), it all will be synced in one picture inside the browser tab.

E.g. for server-client application, go to the source directory for your server code and run codecrumbs -e your-server-src/index.js -d your-server-src, same for client codecrumbs -e src-client/index.js -d src-client. Note: codebases can be located wherever you want, simply run codecrumbs for directory you need.

Export & import (learn and  share your knowledge)

So let’s say you put together some trail of codecrumbs describing some important flow inside the project. How you can share it with others? Simply download the json file of codecrumbs store, send it to the friend, he/she uploads it to the codecrumbs and can see same you just saw!

WIP

Next features are developing:

• multi languages support - support of java, ruby, python, etc.
• eject codecrumbs - ability to remove all "breadcrumbs" from source code in "one click"
• VS Code extension - some neat features right inside the code editor. Checkout the repo here.

Support

If you like this project and believe it makes sense, please, put a ⭐ or tweet about it - it will show your support and motivate me 👊. Thanks!

Contribute

When contributing to this repository, please first discuss the change you wish to make via issue, email, or any other method with the owner of this repository before making a change. Ideas and suggestions are welcome. To start development environment, clone the repo & run:

yarn && yarn start
